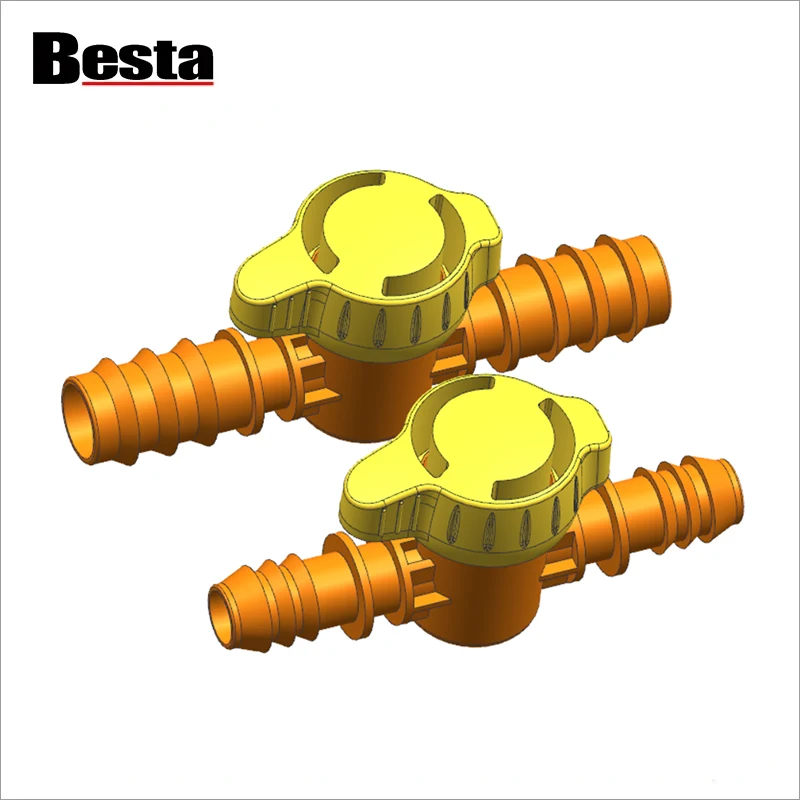

Irrigation mini valve has many different types, this type without sealing ring, it's the most popular type in the market at present, it's new design, price is cheaper, and very good quality, no any leakage, there has two different materials in the market, PP and POM, both are ok. About mini valve mold, we use standard mold base, cavity with 718H or H13 steel, mini valve body mold with 3plates design, hot or cold runner, normal 4cavity, the core use beryllium bronze is better, HRC38, better than water cooling, the mini valve handle mold also use standard mold base, normal with 8cavity, subgate, cold runner is ok. We can design one size just one body valve mold, use changable inserts to change different type, it's easy to change the cavity at the injection machine, by this way can help customer produce many different type in one mold, can save mold cost, also can use same handle for different size.As the professional manufacture, we would like to provide you high quality PP/POM Mini Valve Mold. And we will offer you the best after-sale service and timely delivery.
About PP/POM Mini Valve Mold
Product description |
Mikro ureztatzerako diseinu berriko balbula txikia, o-ringik gabe |
Tamaina aldagarria |
erabili changalbe txertaketa balbula gorputzaren molde berean tamaina desberdinak ekoizteko |
Markaren posizioa |
mini balbula heldulekuaren gainazalean |
Moldearen oinarria |
LKM, HASCO, DME edo bezeroaren eskaeraren arabera, molde estandarra |
Barrunbearen zenbakia |
mini valve body with 4 or 8cavities, handle with 8 cavities |
Barrunbea eta nukleoa altzairua |
718H, P20H, H13, 2316 etab. |
Design software |
ETA, Auto CAD etab. |
Material plastikoa |
PP edo POM |
Moldearen atea |
balbularen heldulekua azpiko atearekin, balbula-gorputza pin puntuko atearekin |
Moldearen korrikalaria |
Korrikalari hotza edo beroa |
Cooling system |
Ura hoztea edo berilio brontzea hoztea |
Tratamendu termikoa |
Gelditzea, nitrurazioa |
Moldearen azalera |
EDM, ehundura, distira handiko leunketa |
Barrunbearen gogortasuna |
HRC28~60 |
Moldearen bizitza |
> 300.000 plano |
Epea |
45 ~ 60 egun |
Moldeen ontziratzea |
Egurrezko kutxa estandarra esportatzeko |
